Native Son

Directed By: Mikael Burke

Scenic Design: Joy Ahn

Costume Design: Megan Pirtle

Lighting Design: Simean Carpenter

Sound Design: Camilie Demholm

Photos by: Michael Brosilow

LED Tape

The most complex part of this project was planning for and installing the LED tape which lit up the cracks running through the entire set. In addition, the lighting design called for additional Led tape to light up several windows in the set.

LED cracks highlighted and labeled on scenic elevations.

LED cracks highlighted and labeled on scenic elevations.

LED cracks highlighted and labeled on scenic model. This document was especially helpful when planning how the LED tape was to be run through the set.

Full LED System Schematic

I made this spreadsheet to keep track of all the applicable details for this system. It also performed most of the neccessary electrical calculations.

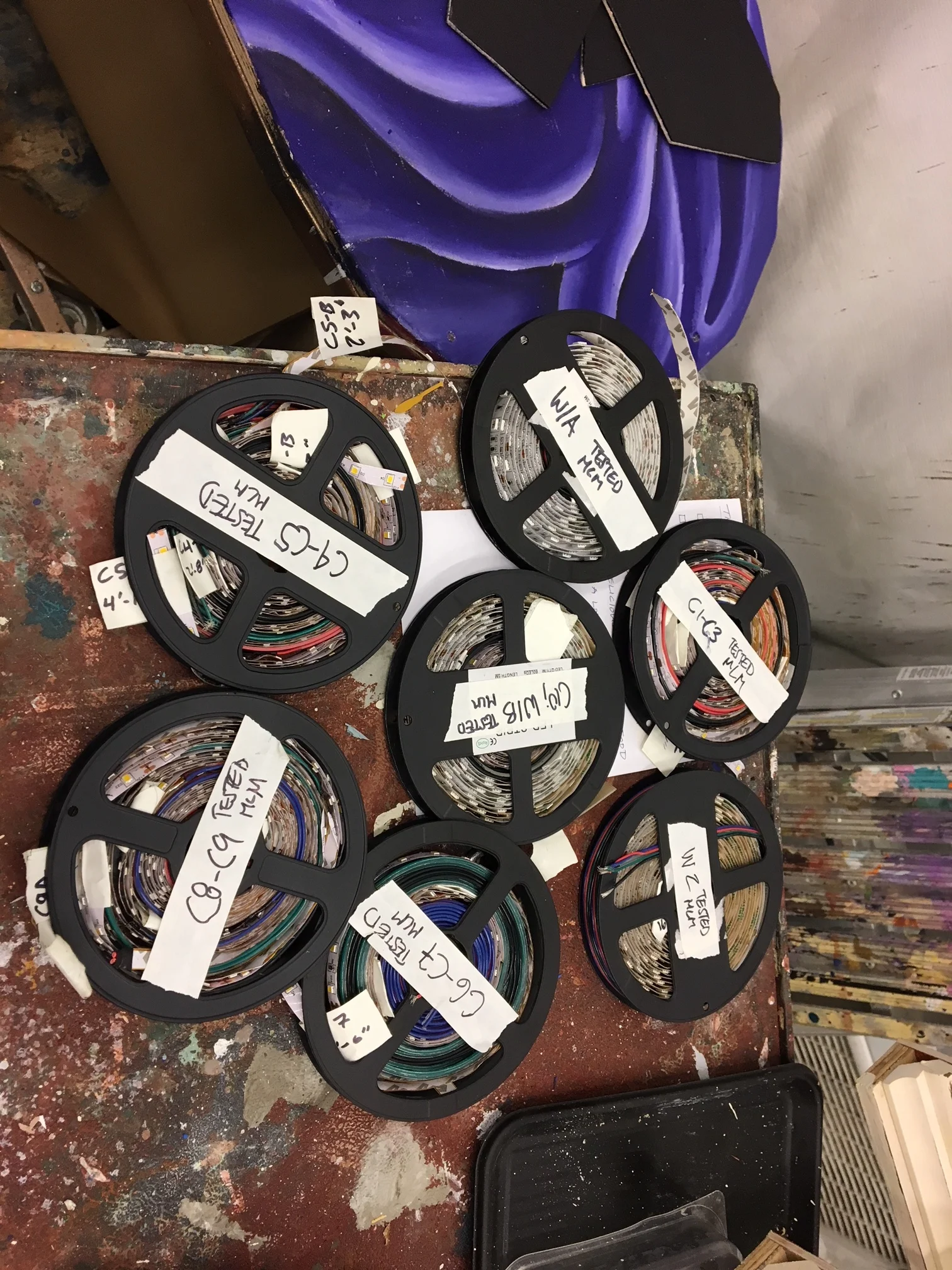

Spools of Soldered and Tested LED tape waiting to be installed.

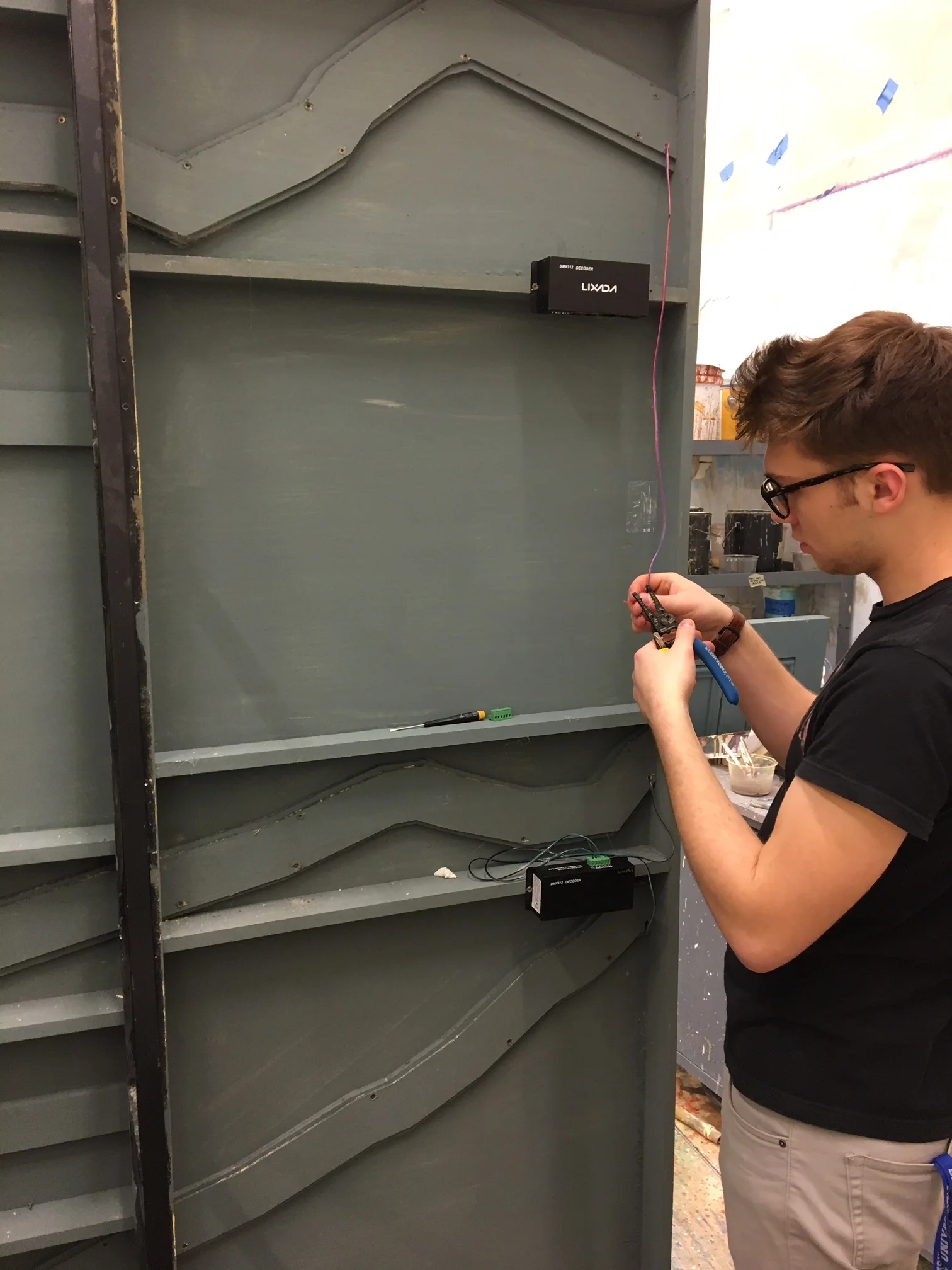

Scott Tobin wiring a LED decoder.

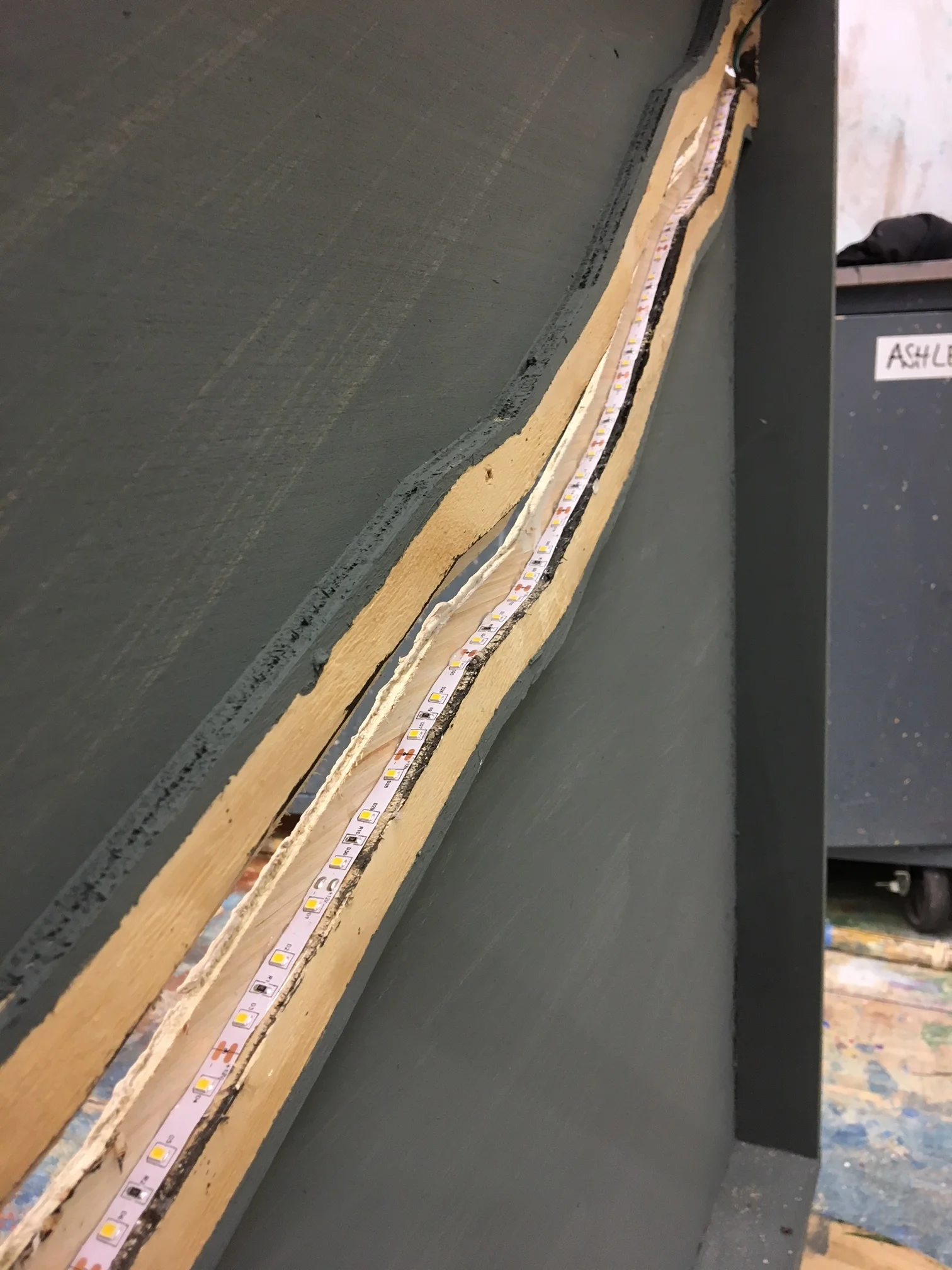

LED tape installed in a crack.

Installed PSU & LED Decoder for one crack section. DMX and 120V power lines were installed in the space.

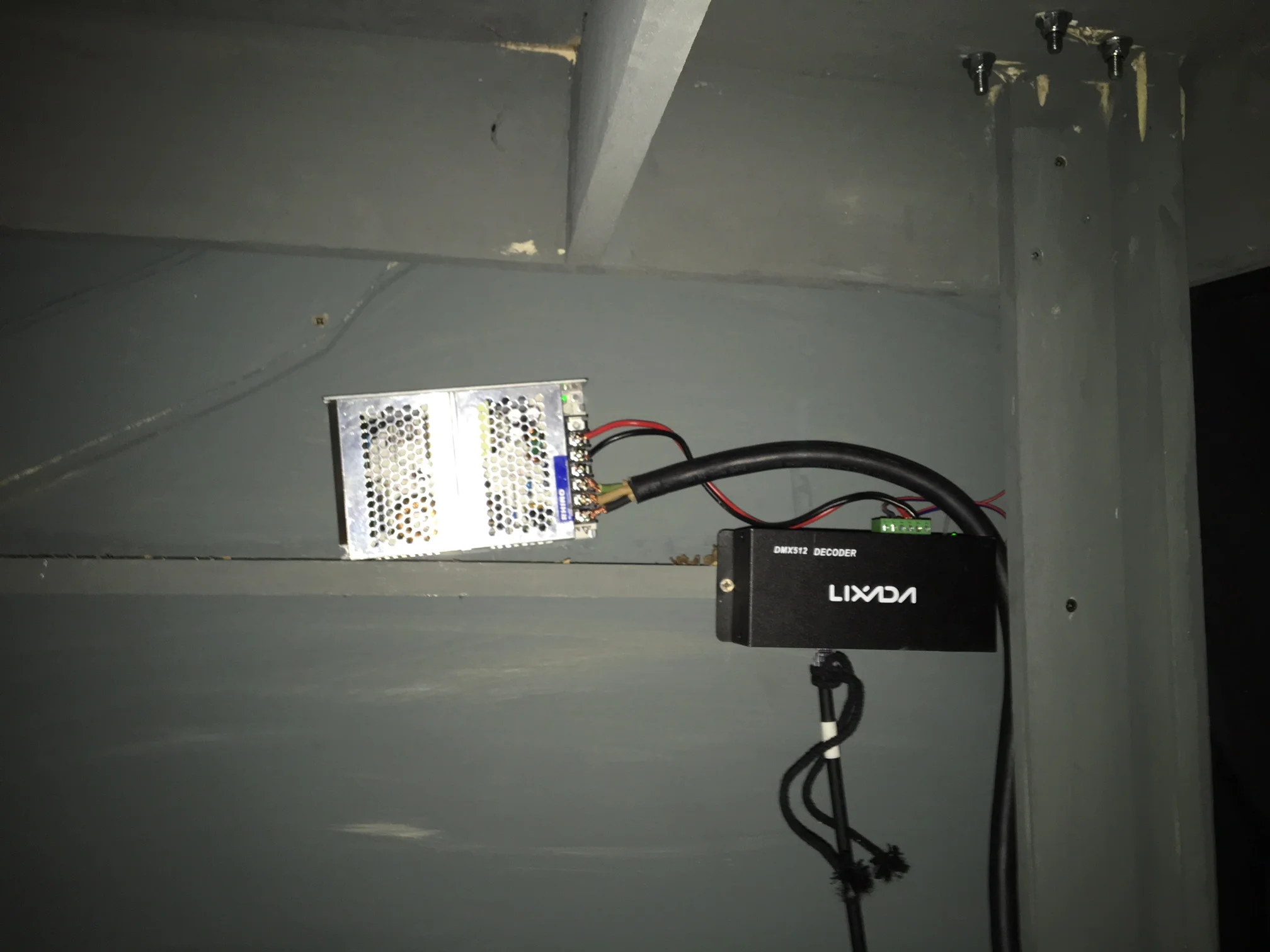

Powersupply and Decoder with power and DMX lines installed.

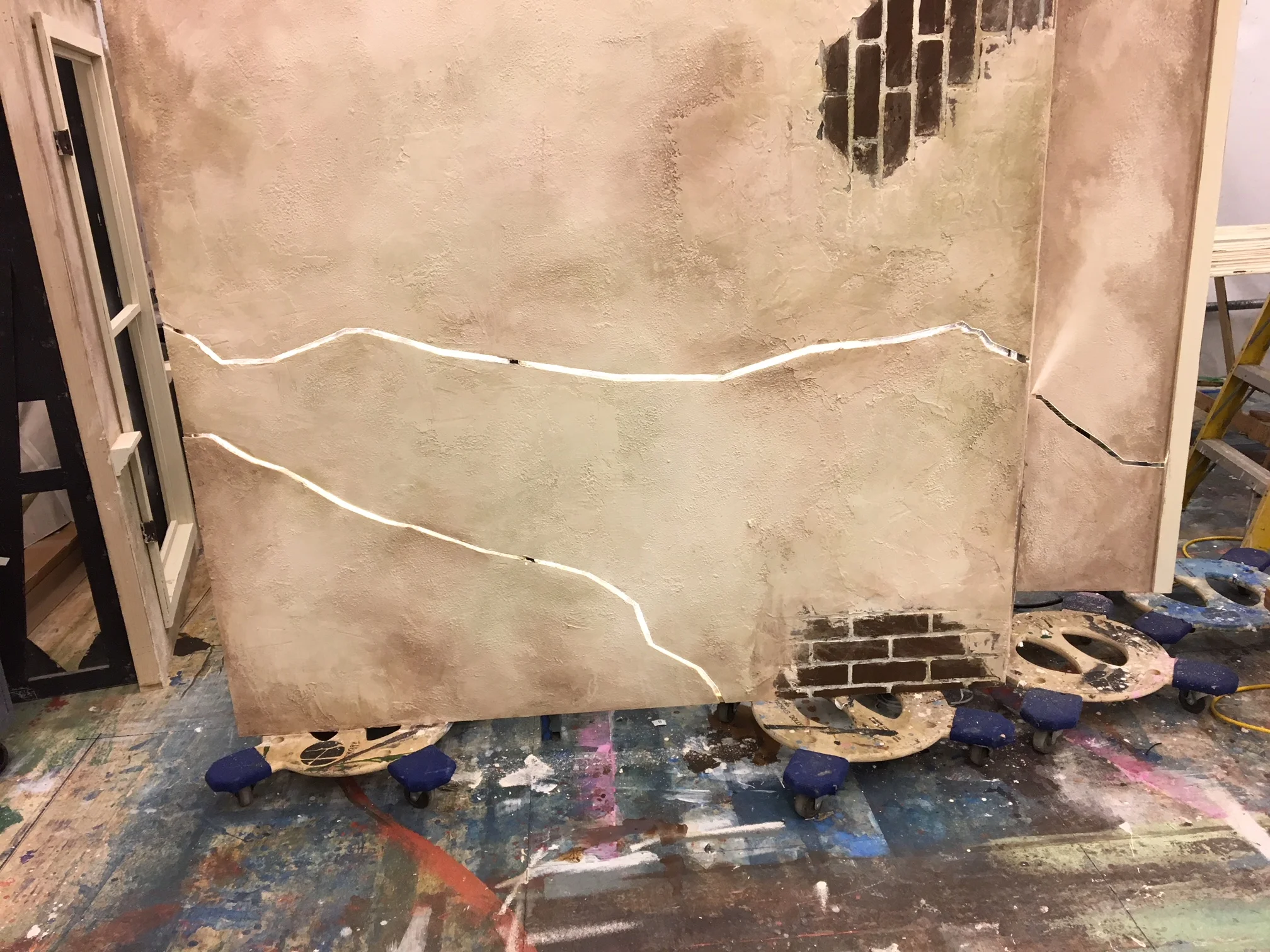

Two LED cracks glowing during testing in the shop.

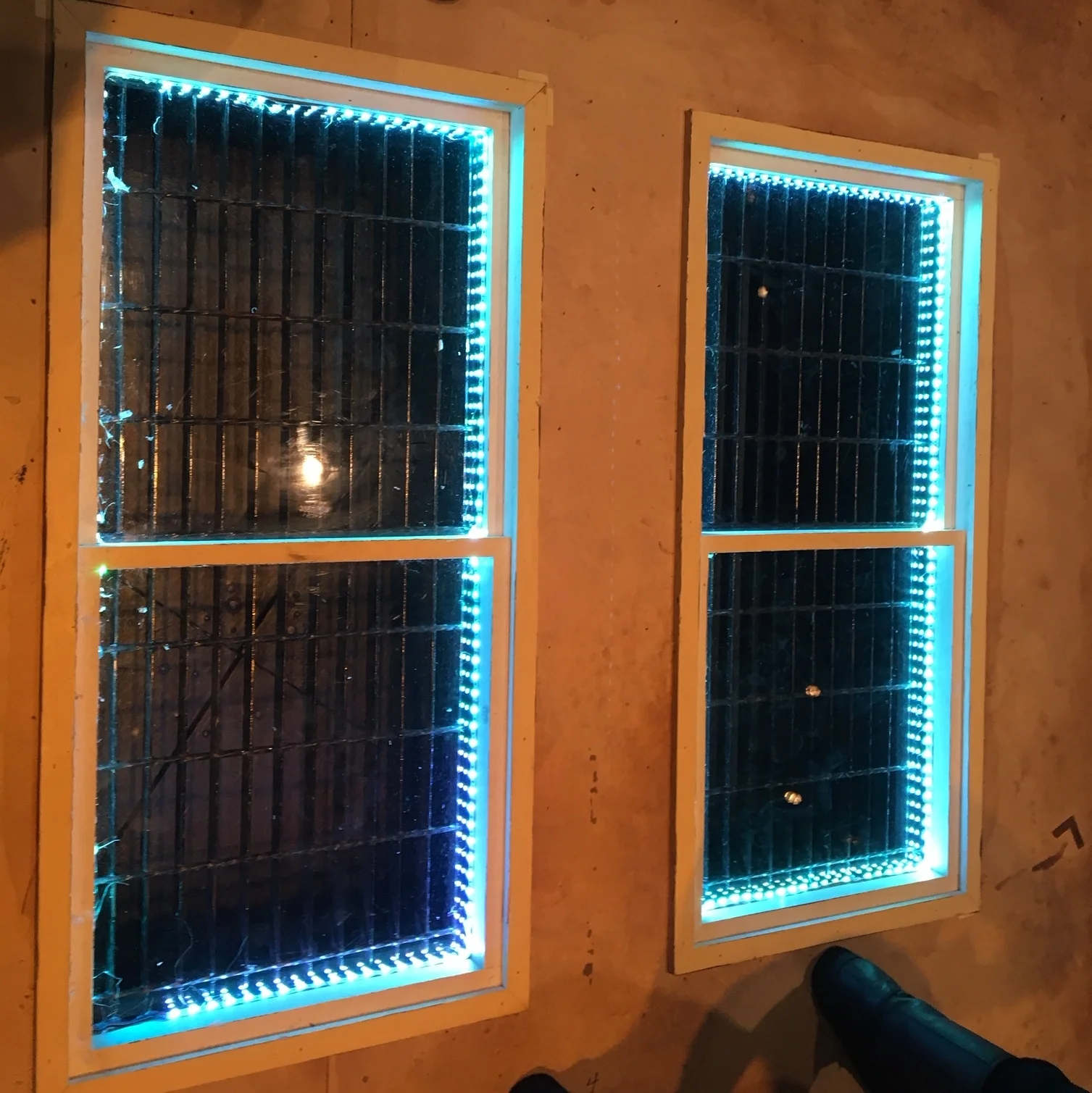

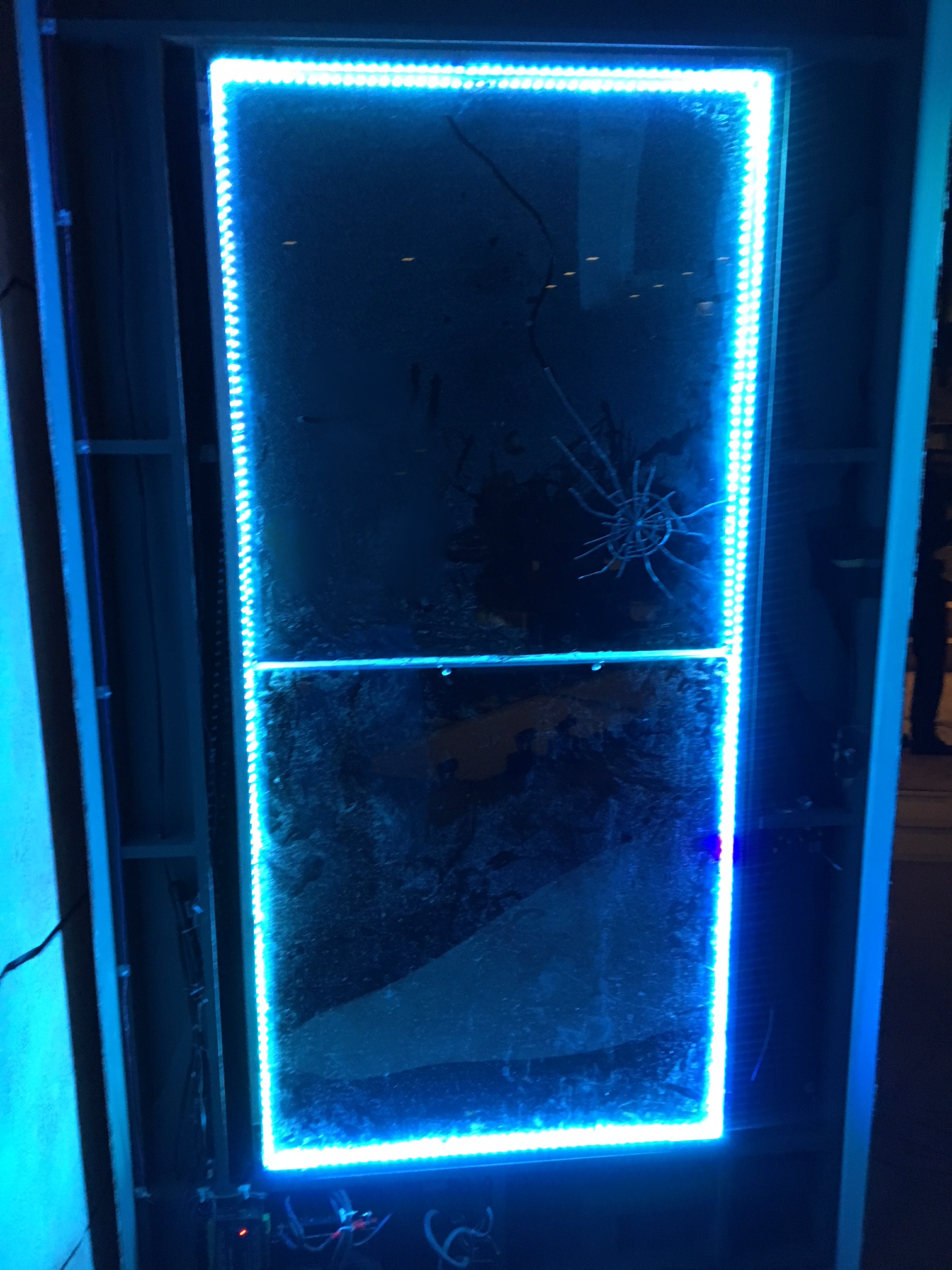

RGB LED windows installed and operational.

Wireless LED window from the back.

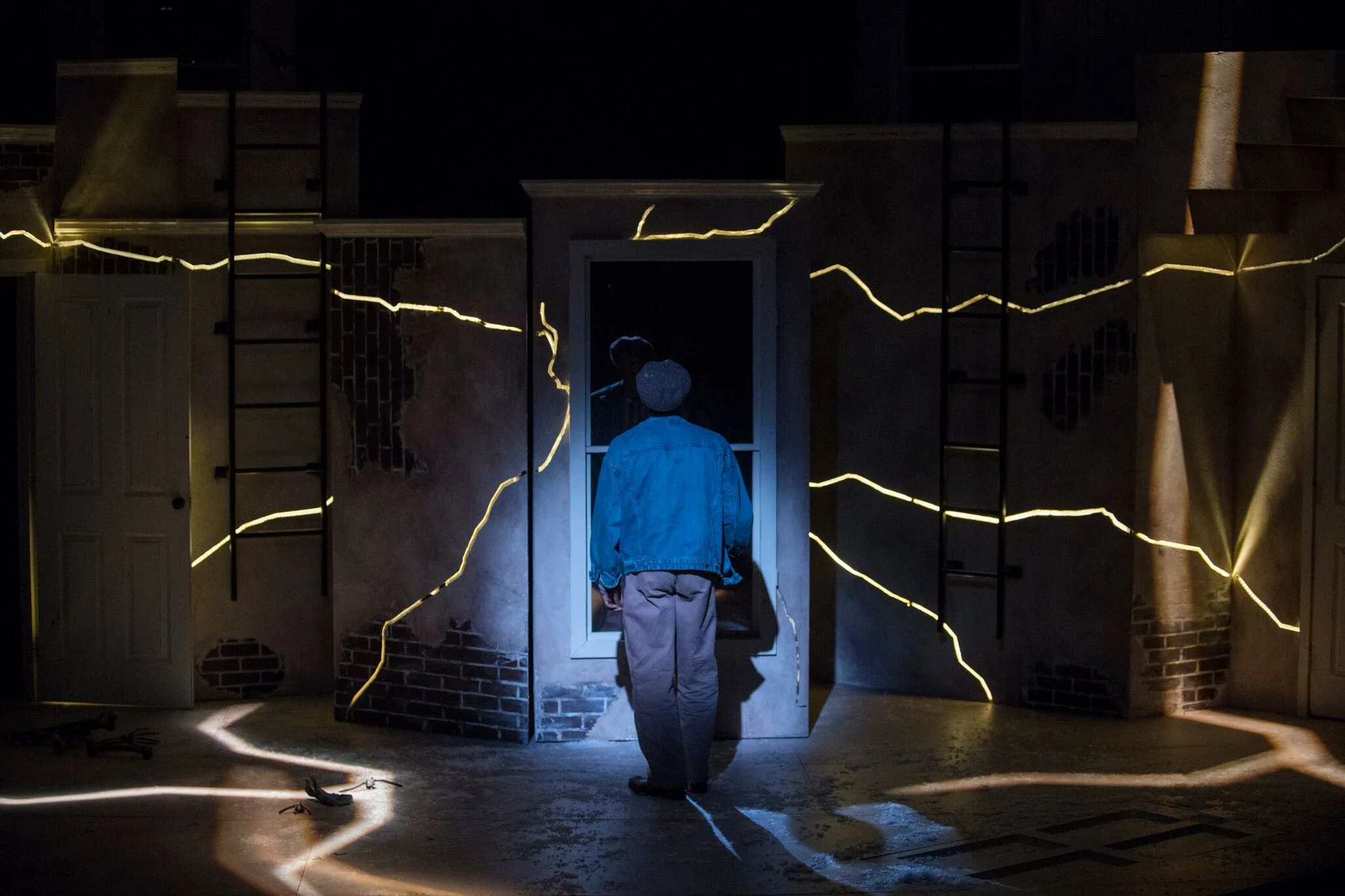

Full LED crack system working during a performance.

Full LED crack system working during a performance.

Lighting Design by Simean Carpenter; Photo by Michael Brosilow

LED cracks highlighted and labeled on scenic elevations.

LED cracks highlighted and labeled on scenic model. This document was especially helpful when planning how the LED tape was to be run through the set.

Full LED System Schematic

I made this spreadsheet to keep track of all the applicable details for this system. It also performed most of the neccessary electrical calculations.

Spools of Soldered and Tested LED tape waiting to be installed.

Scott Tobin wiring a LED decoder.

LED tape installed in a crack.

Installed PSU & LED Decoder for one crack section. DMX and 120V power lines were installed in the space.

Powersupply and Decoder with power and DMX lines installed.

Two LED cracks glowing during testing in the shop.

RGB LED windows installed and operational.

Wireless LED window from the back.

Full LED crack system working during a performance.

Wireless Wall

This center wall also proved a challenge. It moved around the stage but also had built in led tape and a set-mounted birdie. actors could open the window and step through which meant that any electrical equipment had to be out of the way. This necessitated the construction of a wireless control solution which fit into the framing of the wall.

View of Wireless DMX system with labels.

View of Wireless DMX system with labels.

Battery Section Closeup

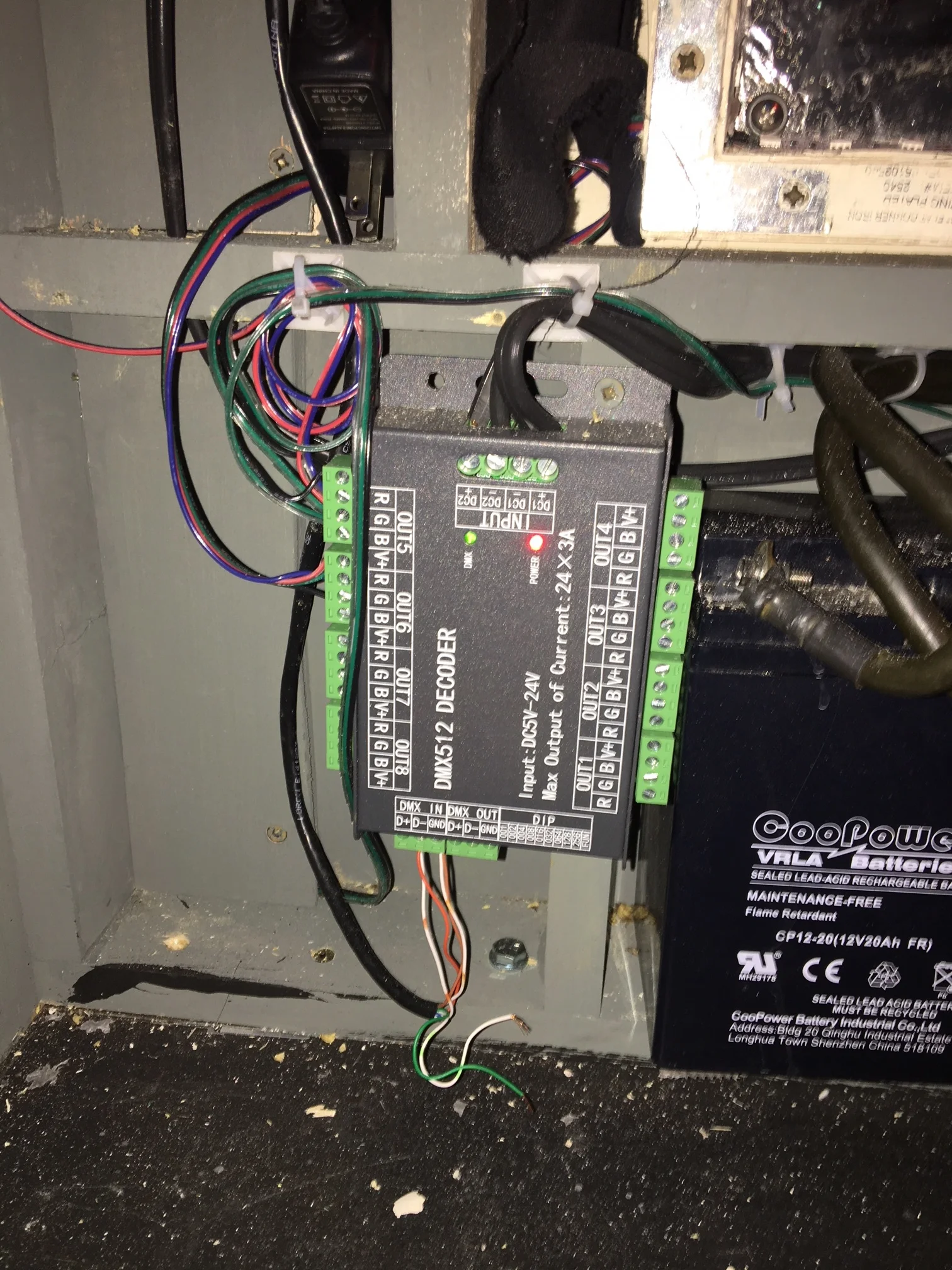

LED Decoder Closeup

Wireless System Schematic

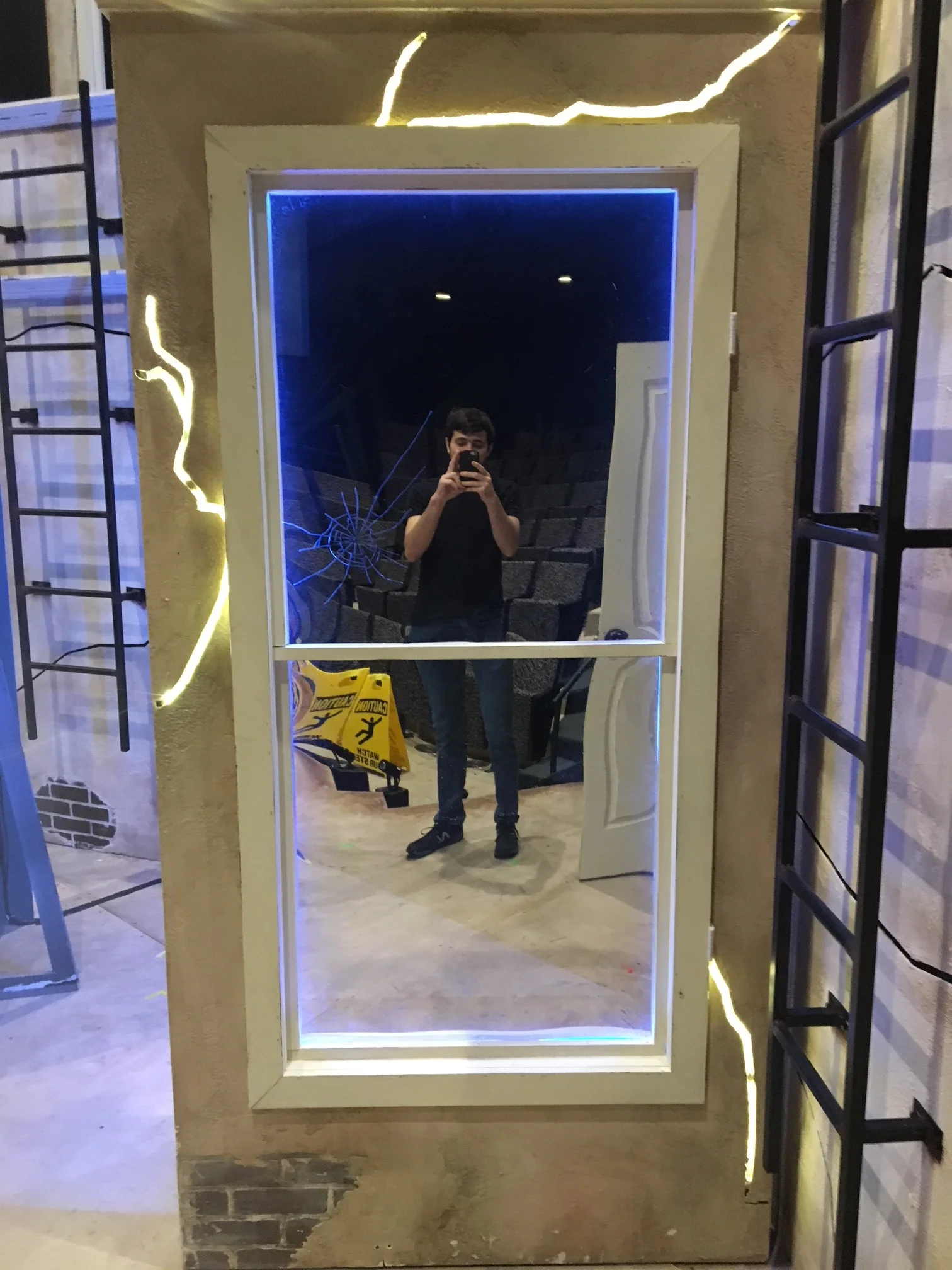

Full System Operational

Wireless Wall in Action

Lighting Design by Simean Carpenter; Photo by Michael Brosilow

View of Wireless DMX system with labels.

Battery Section Closeup

LED Decoder Closeup

Wireless System Schematic

Full System Operational

Wireless Wall in Action

Tracking Light

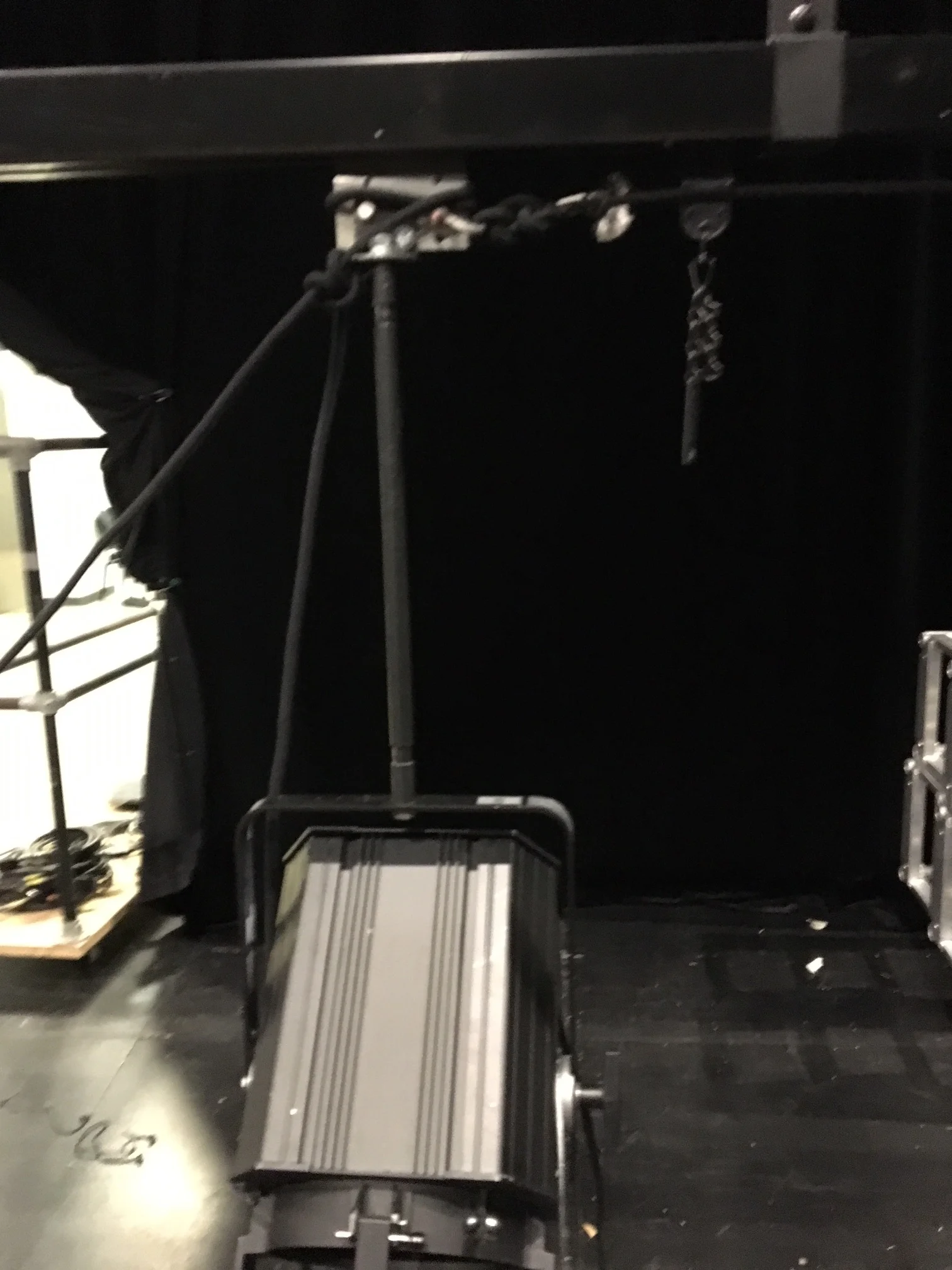

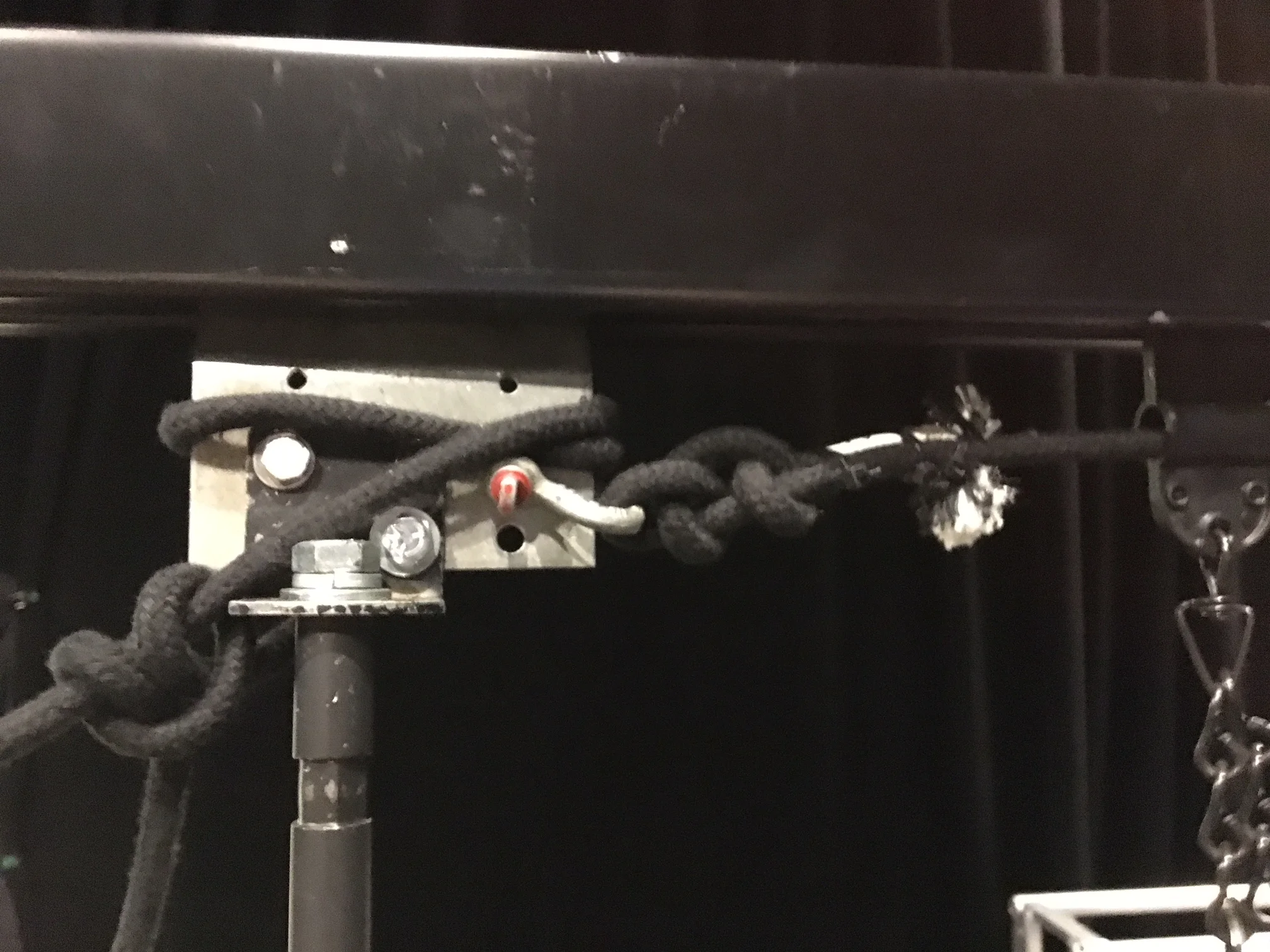

The lighting design also called for a Fresnel to physically sweep across the stage. In conjunction with the technical director and shop staff, I devised this system to solve the challenge of rigging and cabling the fixture.

Initial Sketch

Initial Sketch

Plot & Paperwork

Native Son FINAL GP.jpg

Native Son FINAL GND.jpg

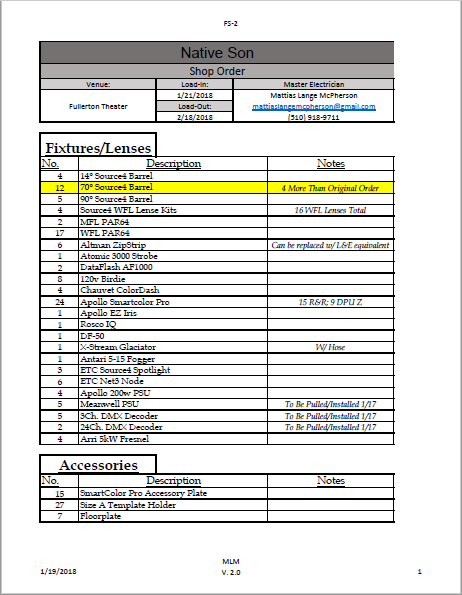

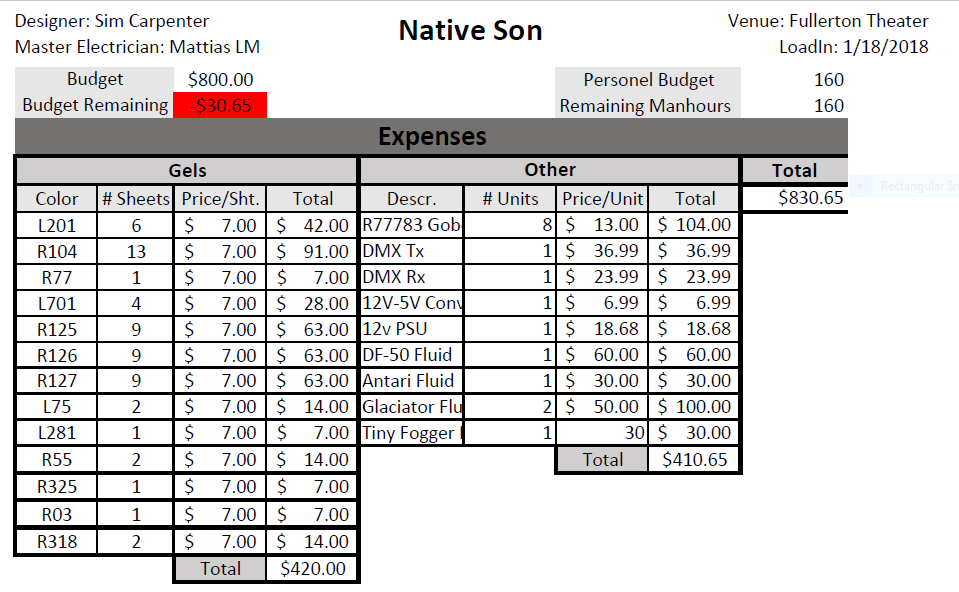

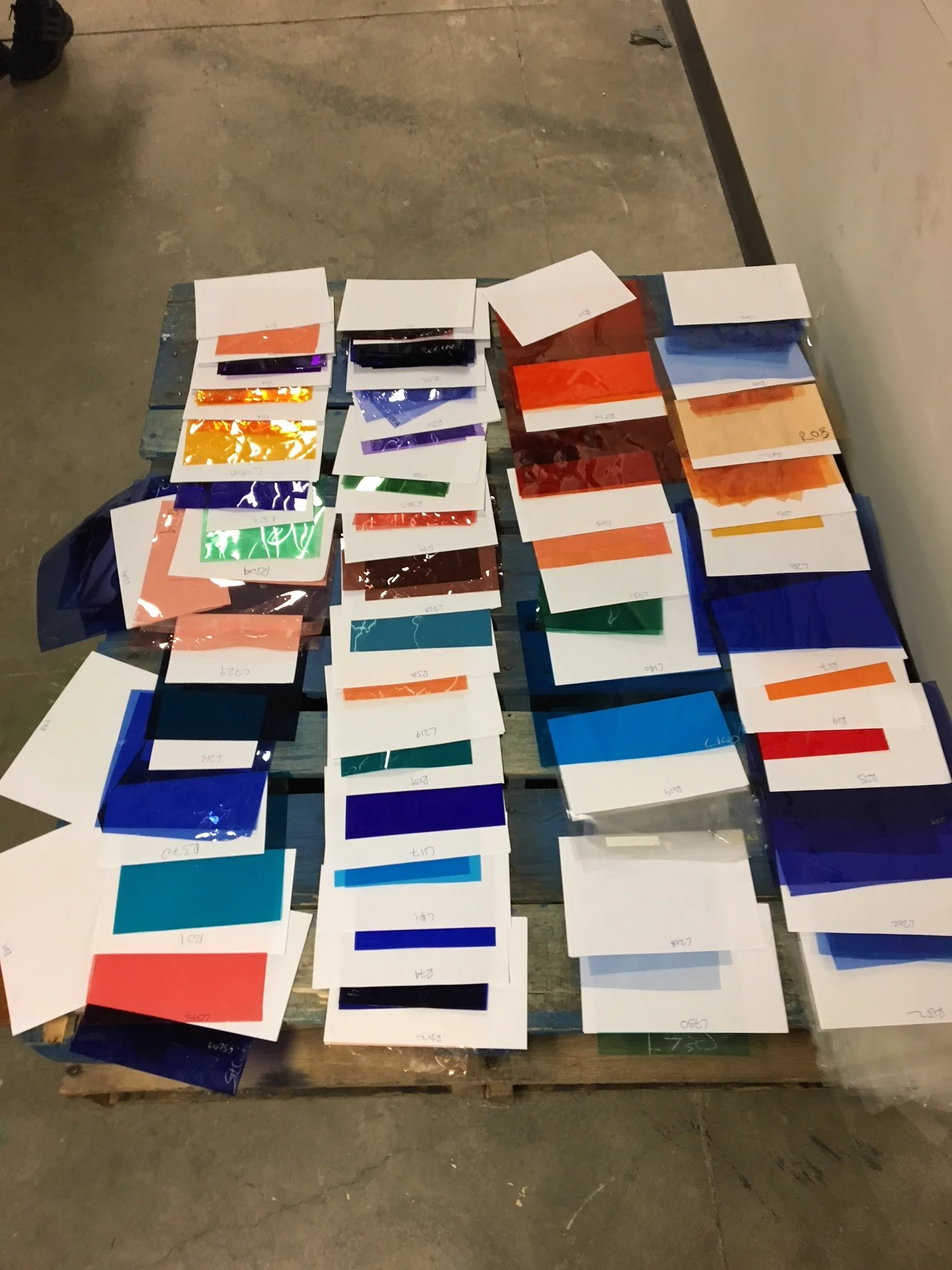

Shop Order 1.PNG
